Description

Bypass / Side-Stream Filter Kit

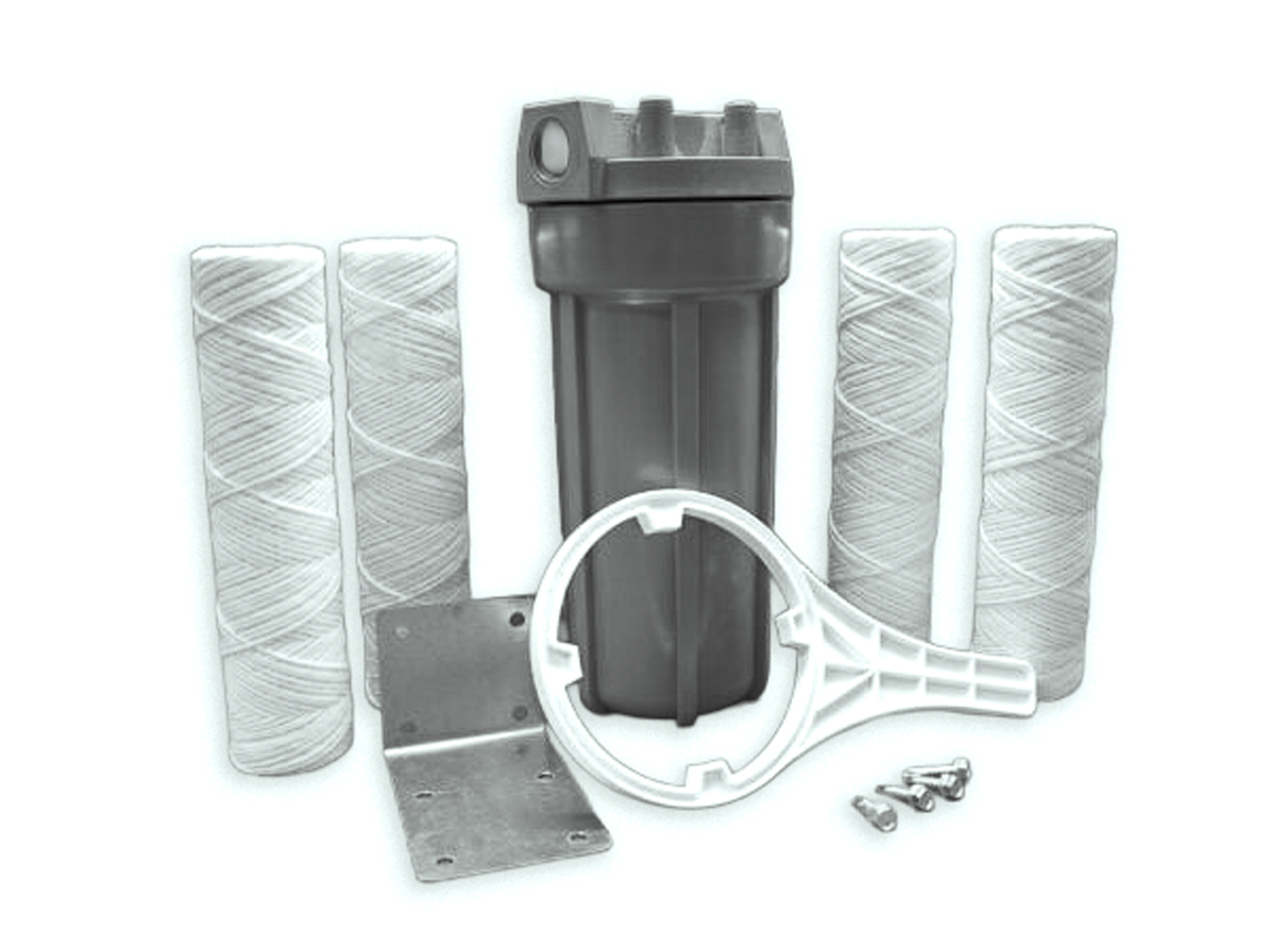

Bypass / Side-Stream Filter Kit Includes:

(1)  One Glass Reinforced High Temp Non Metallic Canister with “O” Ring

(4)  Four  5-Micron High Temperature Polyester String Wound Filters / Metal Core

(1)  One Canister Tool

(1)  One Mounting Bracket with (4) Four Screws



High Temp Non Metallic Canister Connections: ¾” FPT (inlet and outlet)
Filter Material: The filters are made from a high temperature Polyester string wound around a stainless steel core. The filters are rated to 220°F.

The purpose of a bypass filter is to continuously remove particles from the GARN® unit’s water. Removing this material improves the effectiveness of the water chemistry, helps extend the life of the GARN® unit, and keeps the system operating at peak performance.

See the GARN® Owner’s Manual for insulation details  “Bypass/Side-Stream Filter Instructions”
